FSL100 Flame Detector

FSL100 Flame Detector

Honeywell’s FSL100 range of Light Industrial/Commercial Flame Detectors enables simple coverage of fire hazard areas across many fire hazard applications. Installation, set-up, and operation are simple. Wide solid area coverage and fast speed of response optimize safety. With an inbuilt automatic test and test lamps available to cover all models, reliability is ensured.

The newest Optoelectronic flame detector for a wide range of Light Industrial fire detection from Honeywell Analytics.

A range of middle-market Optical Flame Detectors joining the HA FSX High-End products. Addresses a wide range of fire protection applications both indoors and outdoors. With 3 versions to cover a wide range of flaming fires: Ultraviolet (UV), Ultraviolet/Infrared (UV/IR) and Triple Infrared (IR3).

Contact Us for stock levels and order fulfillment

Sales & Support: 1300 436 267
Email: [email protected]

  • Features
  • Specifications
  • Accessories
  • PDF Download

Features

  • UV, UV/IR and IR3 Flame Detectors to cover a wide range of applications
  • Robust, simple to install & set-up
  • Automatic test and test lamps for simple check and maintenance
  • Detects wide range of Hydrocarbon & Non-Hydrocarbon fires
  • Wide angle and fast speed of response
  • Fast response
  • FM Class 1, 2 & 3 Div2
  • FM 3260 performance cert
  • Relay and current output (Fault and Alarm)

Specifications

Specifications

Range

35 m (IR3), 25 m (UV, UV/IR) alarming within 10 seconds to a 0.1 m2 n-heptane fire
Cone of Vision

90˚minimum horizontal and vertical
Local LEDs
  • Continuous green: normal operation
  • Continuous yellow: fault
  • Flashing yellow: Fault and guide to repeat self-test after a self-test failure
  • Continuous red: alarm
Current Output

Standard available 4–20 mA (stepped, sinking, non-isolated)

  • 0 mA power fault/microprocessor fault
  • 2 mA optical fault
  • 4 mA normal operation
  • >20 mA alarm
Relay Output: Alarm relay & Fault relay

De-energized during normal operation, no alarm, SPDT, 30 VDC – 2 A, 60 W max. Energised during normal operation, no fault, SPDT, 30 VDC – 2 A, 60 W max.
Cable Gland & Terminals

Cable entry M20 clearance. Supplied with gland suitable for cable diameter from 0.2” (5.5mm) to 0.5”(13mm). Terminals suitable for 0.5mm2 (20AWG) to 1.5mm2 (15AWG) wire
Start Up Times

<10 sec
Alarm Response Time

8 to 30 sec
Alarm Output Settings

Selectable LEDs and relays latching/non-latching; factory setting: latching
Automatic & Manual Self-Test

Automatic Sensor Test (built-in Self-Test) and manual Self-Test
Operating Current Normal

25 mA at 24 VDC
Current in Alarm, at 24 VDC

±75 mA at 24 VDC
Connections to:
  • Fire control panels using the end of the line (EOL) and alarm resistors (current increase)
  • Devices that operate via relay switched outputs
  • PLCs with 4–20 mA inputs
End of Line and Alarm Resistor

To be adjusted to the fire control panel; free terminals are dedicated to the resistors. Note: the alarm and EOL resistor must be rated 2 W min. each and the total power dissipation of both alarm and EOL resistor should not exceed 2 W
Housing

Glass Reinforced Polyester (GRP), Non-incendive. UV resistant, Self-Extinguishing V–0 (UL-94)
Swivel Mount

PA66, UV resistant; Stainless Steel fixings; 280 g (0.62 lb)
Pressure Compensating Element

PCE (Pressure Compensating Element) avoids moisture build-up in the detector housing due to changes in ambient air pressure
Dimensions

125 x 80 x 57 mm
Weight

465 g
Ingress Protection

IP65
Temperature, Operating

–40 ˚C to +70 ˚C
Temperature, Ambient ATEX and FM Class 3611

–25 ˚C to +70 ˚C

Accessories

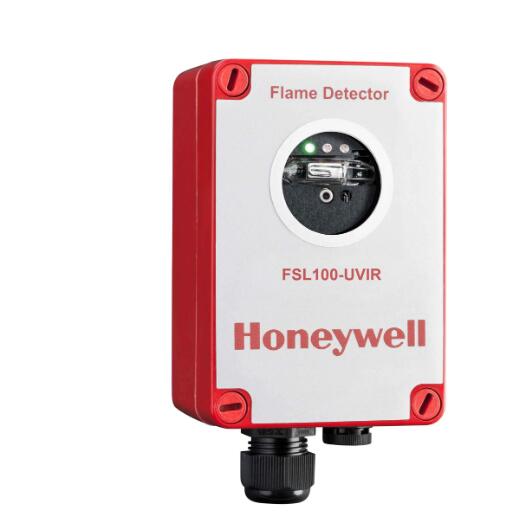

FSL100 Swivel Mont

Part Number: FSL100 - SM21

Allows the FSL100 to be installed and aligned covering the hazard.

FSL100 Test Lamp

Part Number: FSL100 - TL

Covers the total FSL100 range, enabling fast checking of operational capability (included with Universal Charger and Carrying Case).
